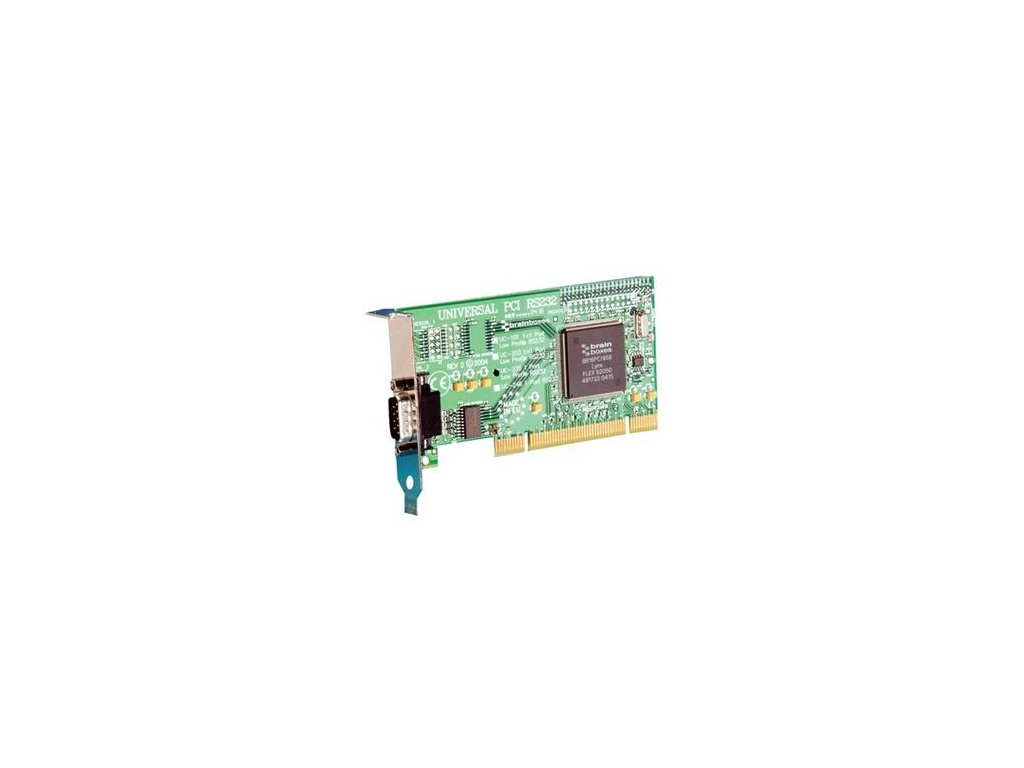

Lenovo Serial adapter Brainboxes UC-235 PCI low profile - seriový port RS232 / DB9

Detailní popis produktu

Port
Ports1
ProtocolRS232
ConnectorDB9 Connector - 9 Pin Male
UARTBrainboxes 16C958
UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size128
Rx FIFO Size128
Operating DistanceEIA - RS232 Standard
CableNo Cable; Integrated Connector
Port Settings
Max Baud Rate115,200
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Flow ControlRTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx ModesPoint to Point
General
PCB Layers4
Form FactorLow Profile
Includes Printer PortNo
Opto IsolatedNo
Power Consumption 190mA @ 5V, 12mA @ 12V
Product Weight 0.062 kg, 0.14 pounds
Product Dimensions 132(l) x 18(w) x 80(h) mm


Podporované OS : Windows XP, 2000, Vista, 7, Server 2008, Server 2003, MS DOS
