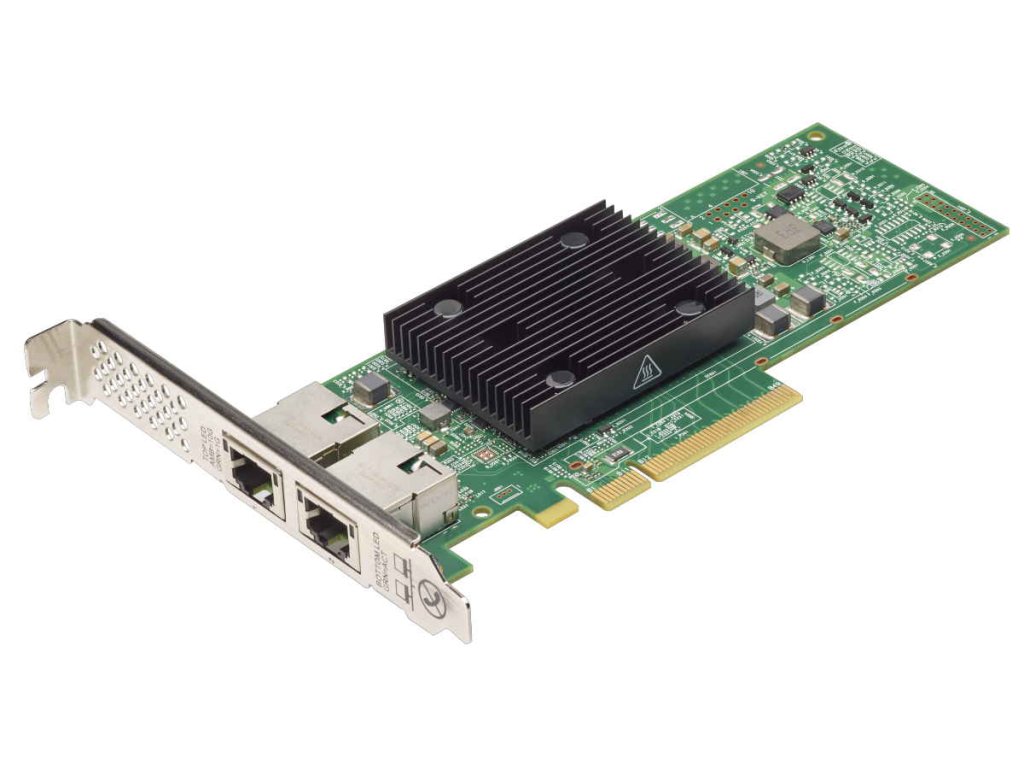

Lenovo ThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter

Detailní popis produktu

The Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter is a special mezzanine LAN-on-motherboard (mezzanine LOM) form factor adapter that also supports the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard XClarity Controller (XCC) management processor. This support enables the sharing the network interface with the XCC and the operating system, thereby eliminating the need for a separate management network.


The adapters have the following specifications:
•Dual-channel 10 Gbps Ethernet controller ?10GBASE-T IEEE 802.3an support
?1000BASE-T IEEE 802.3ab support

•Based on the Broadcom BCM957416A4160C adapter and BCM57416 controller
•Supports IPv4 and IPv6
•Broadcom TruFlow flow processing engine
•PCI Express 3.0 x8 host interface
•Form factor: ?ML2 form factor (7ZT7A00497)
?PCIe low-profile form factor (7ZT7A00496)



Virtualization features
•SR-IOV support with up to 128 VFs
•VXLAN, NVGRE, Geneve, GRE encapsulation and decapsulation
•vSwitch acceleration
•Multiqueue, NetQueue, and VMQ
•Tunnel-aware stateless offloads
•Message Signal Interrupts (MSI-X) support


Ethernet and NIC features:
•IPv4 and IPv6 offloads
•TCP, UDP, and IP checksum offloads
•Large Send Offload (LSO)
•Large Receive Offload (LRO)
•TCP Segmentation Offload (TSO)
•Receive-side Scaling (RSS)
•Transmit-side Scaling (TSS)
•VLAN insertion/removal
•Interrupt coalescing
•Jumbo frames up to 9 KB
•Network boot-PXE, UEFI
•iSCSI boot


Remote Direct Memory Access (RDMA):
•Supports RDMA over converged Ethernet (RoCE) specifications


Data Center Bridging / Converged Enhanced Ethernet (DCB/CEE):
•Hardware Offloads of Ethernet TCP/IP
•802.1Qbb Priority Flow Control (PFC)
•802.1 Qaz Enhanced Transmission Selection (ETS)
•802.1 Qaz Data Center Bridging Exchange (DCBX)


Management:
•SMBus 2.0
•MCTP over SMBus
•NC-SI support (ML2 adapter only)



Redbooks - https://lenovopress.com/lp0705-broadcom-nxe-10gbase-t-adapters
